J-MIS (Jay's Moony Item Sorter)

MISmis-storagesMIS005Updated Jun 28, 2025Archived Jun 28, 2025

✅Functional⭐Recommended

Authors:

jayroi

Moonyinspired

sergyd

Endorsed by:

Andrews54757

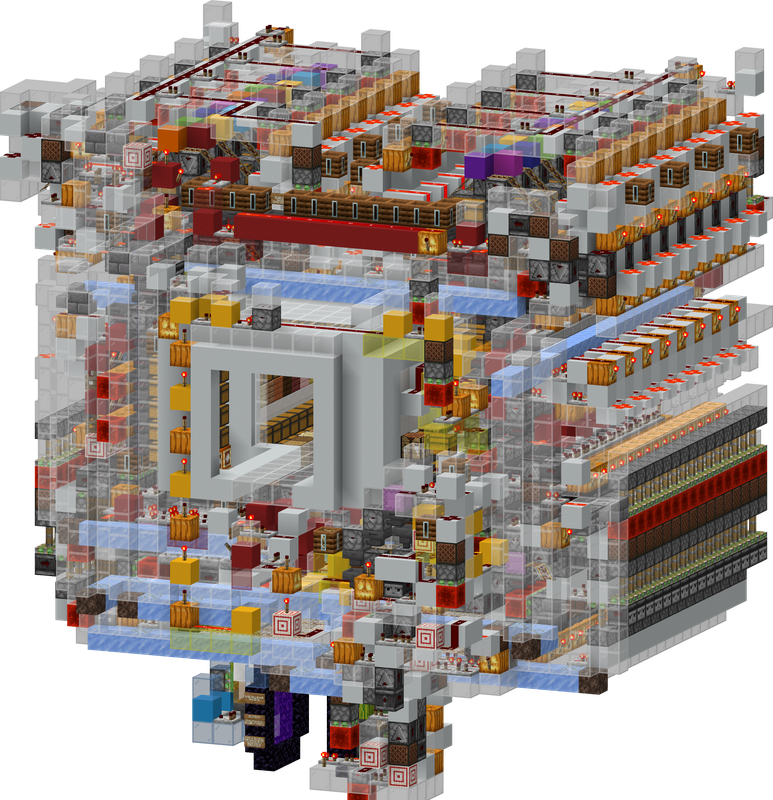

A compact MISDefinition: A type of item sorter (system) that sorts multiple item-types into a single chest or group of chests, usually used to reduce space used by single item-type sorters to group not too common items int... system using MIS 5.1 and hybrid box loaderDefinition: A contraption that fills a shulkerbox with items and then breaks the shulkerbox.s, acting as bulk (97k capacity per bulk item, with overflow protection).

Features

Input full boxes and loose items in the same place
896 Hoppers, 75% HopperlockedDefinition: Hopper-locking powers inactive hoppers with redstone to prevent them from doing anything, reducing lag. Because a locked hopper can’t move items, it can skip several expensive checks each tick and ...
Compact system (29x29x35), fits under a single chunk loaderDefinition: A chunk loader is a simple device which keeps certain chunks loaded in the game. This allows for devices in the chunk to continue operating even when the player is far away. All redstone machines r... with no chunk alignment.
Included item layout which sorts all items.
Runs at hopper speedDefinition: Refers to the speed at which items are processed in a hopper (1 item every 8gt, or 2.5 items per second). Usually written as an integer (e.g. '3x hopper speed'). ## Common hopperspeeds 1x: 9000 ite..., with a gap between item types
Includes feature to distribute boxes after building.
Box loaders are callable, allowing all items to be accessible at any time.
Includes an MIS fix mode, which locks hoppers in the mis and manually buffer droppers, (video will include a tutorial).
Overflow and empty box detectionDefinition: Usually used as a way to tag Loaders(Loader) and Box Displays(Box Display) that restart themselves when boxes come in and they were previously empty..
Pause feature, USE WELL BEFORE LOGGING OFF!!!

Considerations

No box sorting, all boxes input are unloaded, and if bulk, repacked into boxes.
Pause feature is rather slow.
While all automatic systems are toggle-stateless, the box-call feature has a brief couple toggle-states for compactness.

Notes

WDL Includes (from left to right) an unassigned build (no filters), an assigned build (with filters), and an undecorated, unfiltered build, plus the item layout and sliceDefinition: A repeatable ( Preferably tileable ) component within a system. behind.
