IBSfirst-item-box-sortersIBS002Updated Jun 23, 2025Archived Jun 23, 2025
✅Functional⭐Recommended
Authors:金合欢酱喵~ (acaciachan)
Endorsed by:Andrews54757

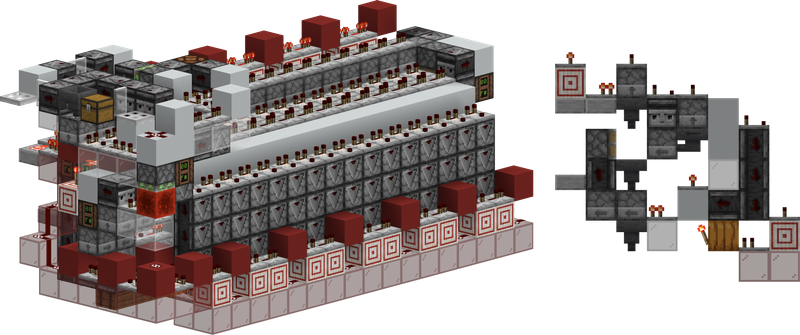

Sorts boxes by their first item's type at hopper speedDefinition: Refers to the speed at which items are processed in a hopper (1 item every 8gt, or 2.5 items per second). Usually written as an integer (e.g. '3x hopper speed'). ## Common hopperspeeds 1x: 9000 ite.... Works by taking the first item out of the box, and recombining the box with the item in the assigned sliceDefinition: A repeatable ( Preferably tileable ) component within a system..
Features
1wABtDefinition: An extension of n-Wide tileable, but where a solution has been provided by the author on how to put 2 Slices(Slice) of the same system next to each other, by moving/editing some components within t... slices, ABC tileable locking lines
Very small: 6x7 (excluding the hopperlockingDefinition: Hopper-locking powers inactive hoppers with redstone to prevent them from doing anything, reducing lag. Because a locked hopper can’t move items, it can skip several expensive checks each tick and ... and the overflow)
Hopper speed: can sort a box every 8gtDefinition: Minecraft iteratively runs its processing code in a loop. One cycle of this loop is called a Tick or Gametick (gt). Gameticks are also used as the default measurement of time while working with re...
Minimum hopper count: full hopper locking with globalDefinition: Annotates if a signal comes from a global system ( a 'brain' ), or from within a Slice. For example, one global clock could send signals to 8 slices on an interval, or all 8 slices could have their... lines
Overflow protection: the boxes in excess get dropped as item entities
No buffered boxes
Multi shulker box sorting support
Repeaters in the upper dropper line can be replaced with observers
Notes
Both schematicDefinition: Typically a .litematic file or a .schematic file in older versions or with different mods than litematica. It is a blueprint that tells you how to build redstone builds, tells you what materials yo...s are functionally identical, the 1.16 slices are smaller because of the use of target blocks for the global locking.
