FLfilter-loadersFL005Updated Jan 14, 2026Archived Jan 14, 2026
✅Functional⭐Recommended6X Hopperspeed
Authors:Philgoodinator
Endorsed by:Andrews54757

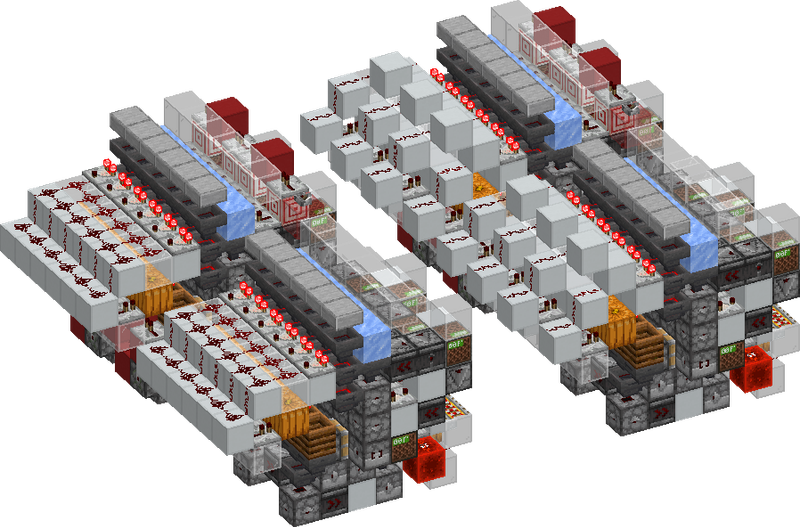

Filters then loads items into boxes at 6xDefinition: Refers to the speed at which items are processed in a hopper (1 item every 8gt, or 2.5 items per second). Usually written as an integer (e.g. '3x hopper speed'). ## Common hopperspeeds 1x: 9000 ite... hopperspeed. Only requires prefilling a single hopper under each filter with a stack of the sorted item. Uses conventional 2xDefinition: Similar to Hopper speed, but less frequently used. Refers to the speed at which items are processed in a dropper when clocked at the minimum interval (1 item every 4gt). 1x Dropper speed is equal t... filters that sync with hopper cooldown better than most high speed loaderDefinition: A contraption that fills a shulkerbox with items and then breaks the shulkerbox.s.
Features
3 wide AB tileableDefinition: An extension of n-Wide tileable, but where a solution has been provided by the author on how to put 2 Slices(Slice) of the same system next to each other, by moving/editing some components within t..., schematicDefinition: Typically a .litematic file or a .schematic file in older versions or with different mods than litematica. It is a blueprint that tells you how to build redstone builds, tells you what materials yo... includes both tiles as subregions
No item spitting with random input
Relatively small footprint (9x7x3)
Ejects full boxes as items without buffer (can be removed)
Notes
Noisy and silentDefinition: A contraption that does not make noise when activated. Sources of noise are: pistons, uncovered note blocks, trapdoors, doors and fence gates, and droppers or dispensers failing to fire. Silent con... variants included. Each schematic has hopper locked and SSIDefinition: Signal strength isolated, signal strength independent, or SSI all refer to item filter designs which cannot crosstalk with each other regardless of signal strength output. This is done by A/B tilin... filter versions.
