Archive Entry

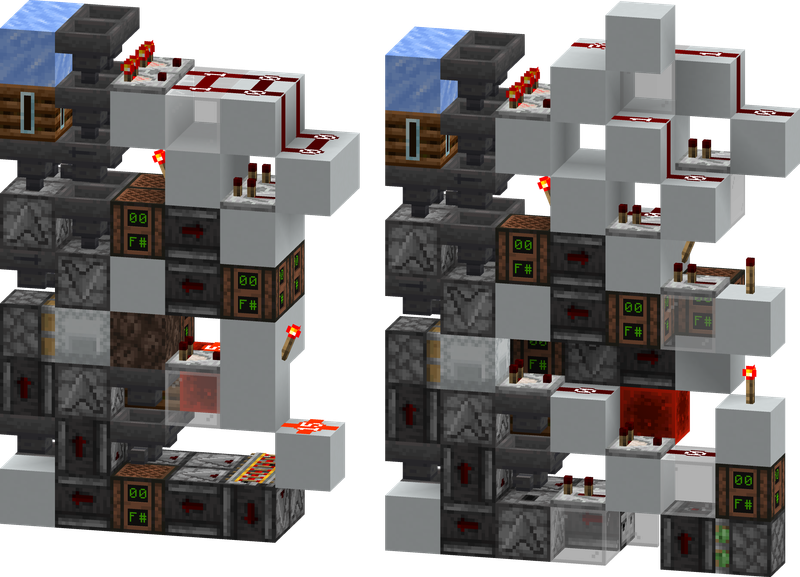

2wt Minimal Prefill Filtered 4x Loader

FLfilter-loadersFL001Updated Jun 22, 2025Archived Dec 28, 2025

✅Functional⭐Recommended4X Hopperspeed8X Hopperspeed

Authors:金合欢酱喵~ (acaciachan)tuzier

Endorsed by:Andrews54757

View

Filters then loads items into boxes at 4xDefinition: Refers to the speed at which items are processed in a hopper (1 item every 8gt, or 2.5 items per second). Usually written as an integer (e.g. '3x hopper speed'). ## Common hopperspeeds 1x: 9000 ite... hopperspeed. Only requires prefilling a single hopper under each filter with a stack of the sorted item. Uses 2xDefinition: Similar to Hopper speed, but less frequently used. Refers to the speed at which items are processed in a dropper when clocked at the minimum interval (1 item every 4gt). 1x Dropper speed is equal t... filters that sync with hopper cooldown better than most high speed loaderDefinition: A contraption that fills a shulkerbox with items and then breaks the shulkerbox.s. Two versions using different filters are provided: SSDefinition: Abbreviation for redstone dust/comparator Signal Strength3 (2wABtDefinition: An extension of n-Wide tileable, but where a solution has been provided by the author on how to put 2 Slices(Slice) of the same system next to each other, by moving/editing some components within t...) and SSIDefinition: Signal strength isolated, signal strength independent, or SSI all refer to item filter designs which cannot crosstalk with each other regardless of signal strength output. This is done by A/B tilin....

Features

• No item spitting with random input
• Relatively small footprint (SS3: 6x9x2; SSI: 7x10x2)
• Minimal prefilling needed when setting up, only 64+1 of the desired item. Prefill like so (Join Storage Tech).

Considerations

• An empty box needs to be put into the dispenser when first setting up

Notes

You can find a different design suited for larger quantities of items in the thread.
