DTdropper-transportDT002Updated Jun 29, 2025Archived Jun 29, 2025
✅Functional⭐Recommended
Authors:RaPsCaLLioN1138Andrews54757Walter+1
Endorsed by:Andrews54757

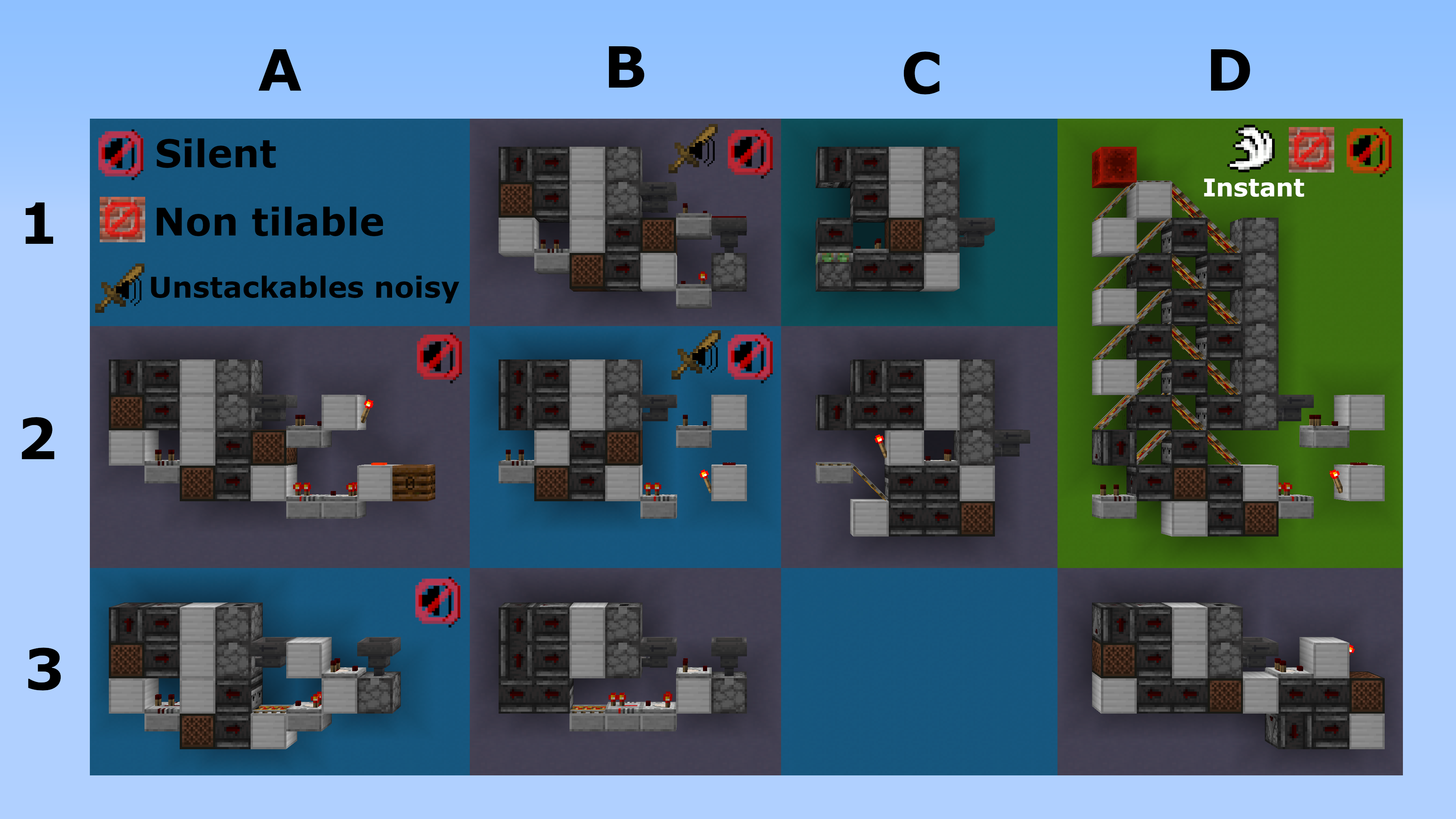

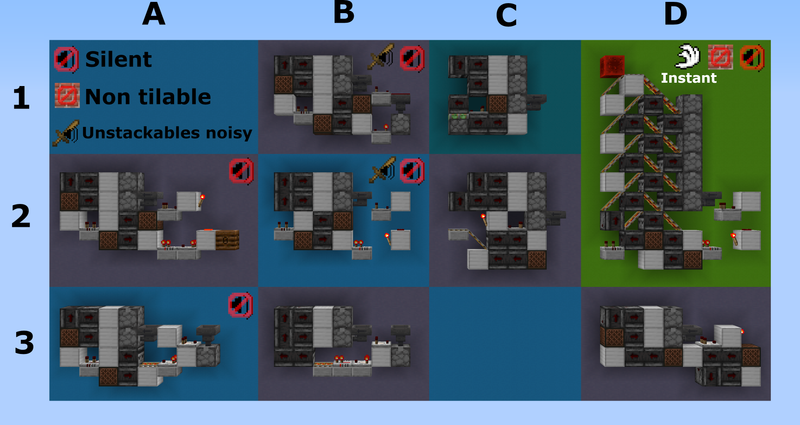

Collection of various different dropper item elevators. All these designs transfer items at hopper speedDefinition: Refers to the speed at which items are processed in a hopper (1 item every 8gt, or 2.5 items per second). Usually written as an integer (e.g. '3x hopper speed'). ## Common hopperspeeds 1x: 9000 ite... (8gtDefinition: Minecraft iteratively runs its processing code in a loop. One cycle of this loop is called a Tick or Gametick (gt). Gameticks are also used as the default measurement of time while working with re...), are lossless and non-directionalDefinition: A contraption is said to be directional if it exhibits a different behavior when rotated or mirrored. This is usually caused by some internal component being directional itself, which in turn is m..., exept for D1/2.
Notes
A3 by @rapscallion1138
B2 by Minestop
D1/2 by @andrews54757
compiled by @walter7381
D1/2 (Green) is non tillable but transfers items instantly and is silentDefinition: A contraption that does not make noise when activated. Sources of noise are: pistons, uncovered note blocks, trapdoors, doors and fence gates, and droppers or dispensers failing to fire. Silent con.... Doesn't work when rails are facing towards the positive X direction (east) .
"Unstackables noisy" mean that the design is normally silent however, unstackable items may cause clicking noises in adjacent sliceDefinition: A repeatable ( Preferably tileable ) component within a system.s.
C1 is 1.13+ and is very noisy
All design not labelled silent have clicking along the tower after items are done passing through, otherwise they are silent. (Excluding C1)
