Archive Entry

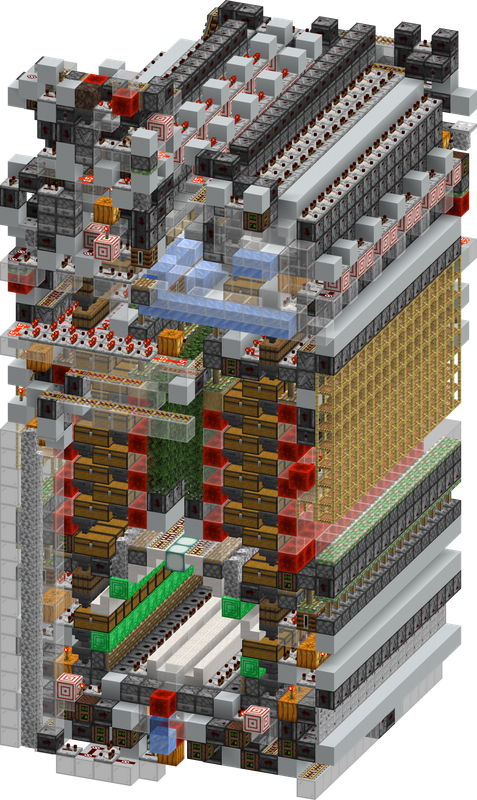

Fully Hopperlocked Compact Bulk Storage

DHbox-display-hallsDH003Updated Jun 27, 2025Archived Jun 27, 2025

✅Functional⭐Recommended2 Displays

Authors:Philgoodinator金合欢酱喵~ (acaciachan)pfeffabeissa+1

Endorsed by:Andrews54757

←→

1 / 2

View

Item bulk with box displayDefinition: A contraption that displays a shulker box and has some or all of the following features: a button to dispense a new box, breaking of the box when it empties, automatically dispensing a new box when... capable of storing 1.4 million items per half sliceDefinition: A repeatable ( Preferably tileable ) component within a system..

Features

• 100% hopperlockedDefinition: Hopper-locking powers inactive hoppers with redstone to prevent them from doing anything, reducing lag. Because a locked hopper can’t move items, it can skip several expensive checks each tick and ...

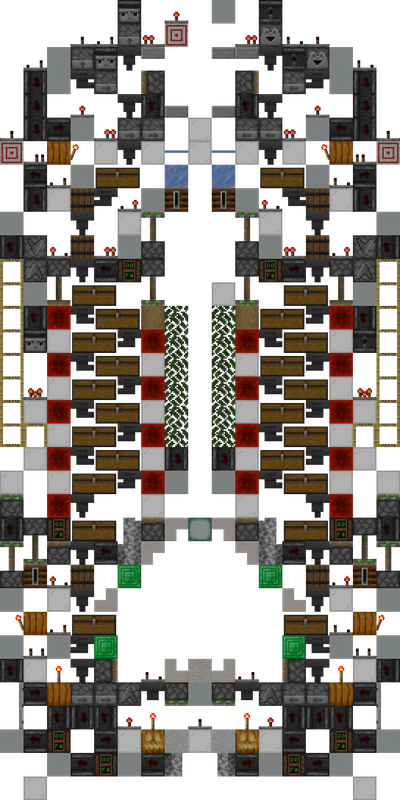

• 1.4 million items per half slice
• Togglestateless
• Compact (17x35x21), sticks out 3 blocks from the first slice and 2 from the last
• 19 hoppers per half slice
• If a slice runs out of items it will unlock itself to restock
• Bufferless, GlobalDefinition: Annotates if a signal comes from a global system ( a 'brain' ), or from within a Slice. For example, one global clock could send signals to 8 slices on an interval, or all 8 slices could have their... initial box placement box display
• Collection hoppers unlock only when needed
• Empty boxes are dropped into a waterstream
• Reliable collection of overflowing and unsorted boxes into a waterstream
• Reliable with random input
• DropperlineDefinition: A line of droppers to transport items fast. U-Turn only triggers and unlocks the side's hoppers when necessary
• Recombination for unsorted boxes triggers only when needed

Considerations

• Fails if only one item is inside an inputted box

Notes

Box sorterDefinition: A Box Sorter is a contraption that takes in boxes of a single item-type, takes the first item out and assigns the box to a storage Slice that matches the filter of that item. slice by @acaciachan . KeygenDefinition: Usually part of a Box Sorter, a keygen is a contraption that takes one item out of a box, breaks it and sends the item and sends one through one hopper or Dropperline and the other through another ... by @pfeffabeissa and @walter7381
