Box Crafter Using Mixed Ingredient Boxes

ACautocraftingAC002Updated Jun 29, 2025Archived Jun 29, 2025

✅Functional⭐RecommendedBox crafters

Authors:

金合欢酱喵~ (acaciachan)

Jaexyn兔子(tuzier)

Endorsed by:

Andrews54757

1 / 2

Consume boxed ingredient materials (containing wood and shulker shells) to craft into shulker boxes with both ingredients being in the same boxes. Instead of having separate boxes for wood and shulker shells, this system creates and uses mixed shulker boxes containing both in a precise ratio.

Features

Higher density, the logs box and shell box takes every 4 boxes can craft 1728 boxes, but these mixed boxes only takes 3 boxes.
Players only need to carry one type of box, which is extremely convenient for management and transportation
No matter what kind of boxed wood, it can be thrown to the "box material loaderDefinition: A contraption that fills a shulkerbox with items and then breaks the shulkerbox." and the final output box is the same, and even bamboo blocks can be consumed. The crafter that consumes bamboo blocks is not only slow but also complex and easy to break.

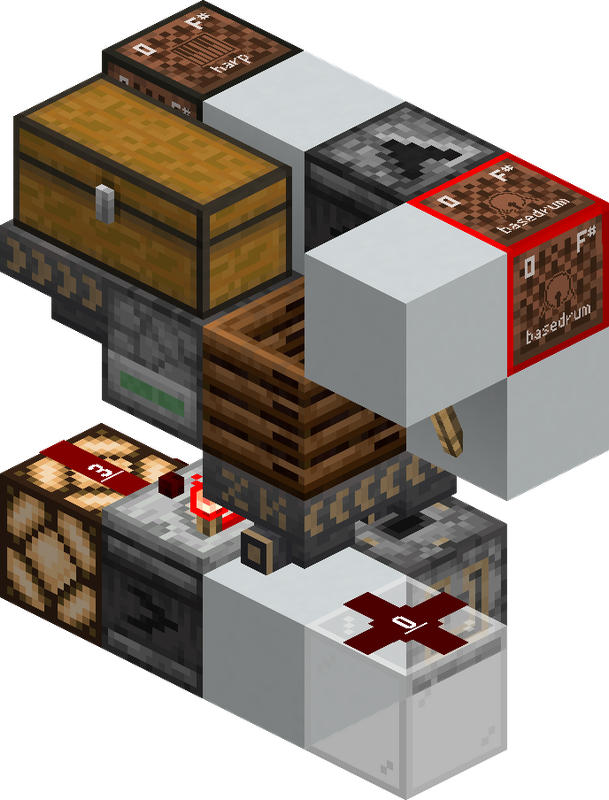

The structure of the empty box crafter has been greatly simplified, and the ordinary version is even only 4x4x2 in size

Considerations

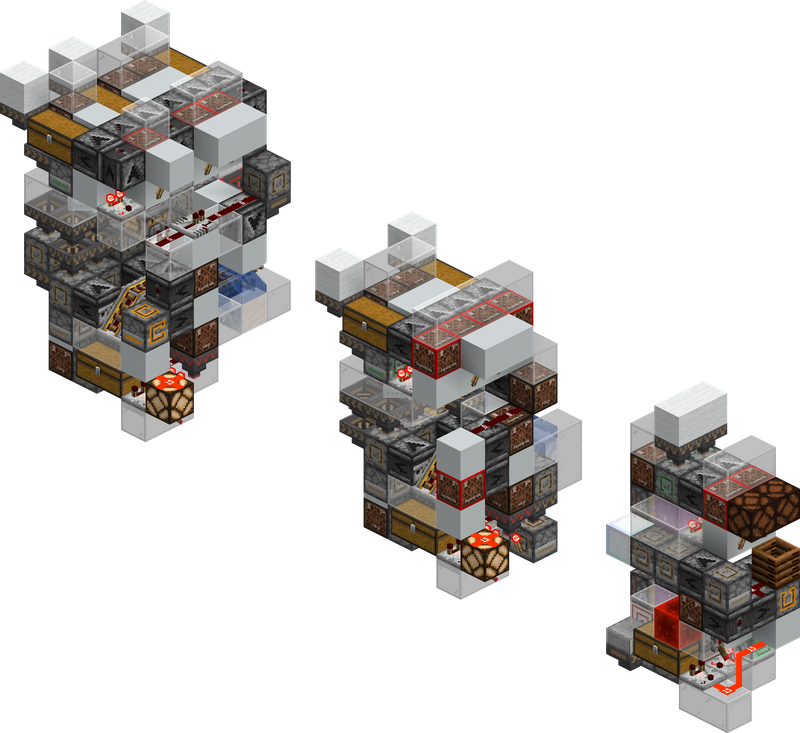

You need to make a "box material loader" in a place such as main storage to make the mixed boxes

Notes

Designs for both mixed boxDefinition: A shulker box with multiple item types. loader and box crafter are included in the WDL. Also included is a slower 1.5x speed version but entityless and without togglestateDefinition: Usually used to refer to intentionally having sticky piston's drop its block by sending it a <3gt pulse in order to cycle between two different states (toggling between block in and out). Important...s.
